Fingerprint Access Hikvision DS-K1T804 Door Access Control Fingerprint Reader Electronic Door Lock Time Attendance Office Warehouse RFID Card Reader EM Card Mifare Card Proximity Card

Fingerprint Access Hikvision DS-K1T804 Door Access Control Fingerprint Reader Electronic Door Lock Time Attendance Office Warehouse RFID Card Reader EM Card Mifare Card Proximity Card

Get the Best Biometric Access Control Fingerprint Access Hikvision DS-K1T804 Door Access Control Fingerprint Reader Electronic Door Lock Time Attendance Office Warehouse RFID Card Reader EM Card Mifare Card Proximity Card.

Free 20pcs RFID card  ||  Free Network Configuration*  ||  Free Software Setup*  || Free One Year Maintenance* ||

1. Collection from SGCCTV   Choicecycle Sim Lim Square CCTV SPECIALIST #02-81 11am~8pm. Whatsapp 98534404 for stock level before visit.

2. Payment by PayNow 201207820G or QR code will receive Free Gift Warning Stickers worth $20.00 (1pc per client order)
3. Please add $18.00 for delivery – 3~5 days.
4. Can issue e-Invoice for your accounting. (upon request)

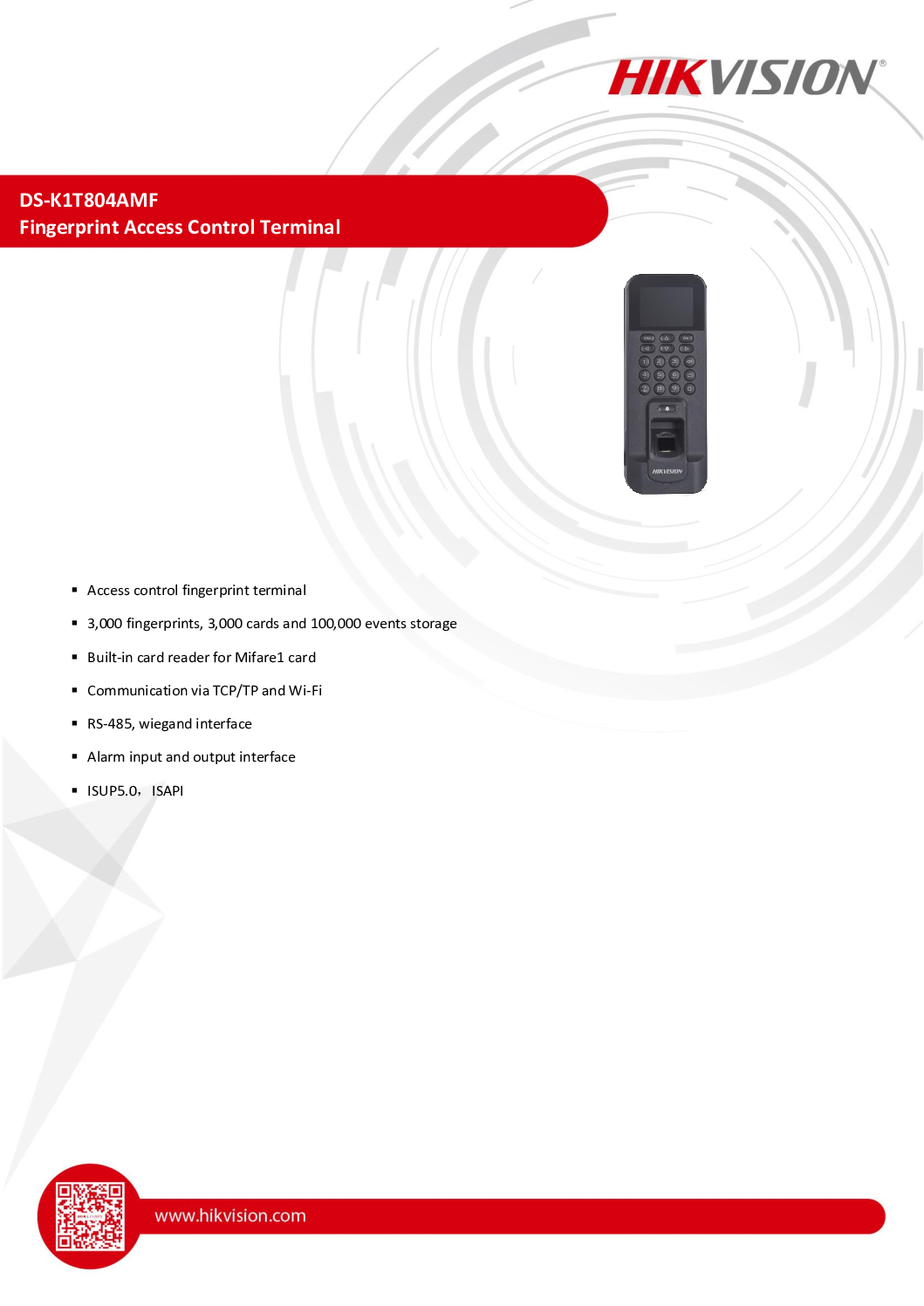

More Choice : FingerPrint Hik DS-K1T804  ||  Operation Guide  ||

• Standalone access control fingerprint terminal
• LCD display screen
• 3,000 fingerprints, 3,000 cards and 100,000 events storage
• Built-in card reader for Mifare or EM card
• Communication via TCP/TP and Wi-Fi
• RS-485, wiegand interface
• EHome for public network communication
• Alarm input and output interface
• Multiple time attendance status

• General
• Communication Interface TCP/IP, RS-485 (For Secure Door Control Unit), Wiegand Output (W26/W34) and Input (Wiegand 26/34)
• Working Temperature-10 ° C to 55 ° C (14 ° F to 131 ° F)
• Power Supply12 VDC/2 A
• Audio1 Buzzer and 1 Loudspeaker
• LED Indicator Power/Status (Red/Green)
• LCD Screen2.4-inch (320 × 240 LCD-TFT Display Screen)
• Fingerprint Capacity Up to 3000 Fingerprints; Up to 10 Fingerprints for Each Person
• Storage Up to 3000 Valid Cards; Up to 100,000 Event Records; Up to 150,000 Attendance Records
• Card Reading Mode  Support
• Input Interface Exit Button × 1, Door Sensor × 1 and Alarm Input × 1
• Output Interface Relay (Lock Output) × 1, and Alarm Output × 1

Fingerprint Access Hikvision DS-K1T804 Door Access Control Fingerprint Reader Electronic Door Lock Time Attendance Office Warehouse RFID Card Reader EM Card Mifare Card Proximity Card

Integrated management of access control and the attendance
 2.4-inch LCD screen to display the time, the date and swiping/fingerprint authentication results
 Supports registering fingerprints from the terminal to software remotely
 Max. 3000 users, Max. 3000 fingerprints and Max. 100,000 event records
 Two attendance authentication modes: authentication by person, authentication by device
 Stand-alone operation: locally add person, card and fingerprint information
 Exports the swiping card data and the attendance report to the USB
 Up to 32 normal shifts and up to 32 man-hour shifts can be configured
 Up to 32 attendance holiday schedules and up to 128 access control holiday schedules can be
configured
 Generates the attendance report automatically and view the attendance data easily
 The doorbell can connect the third party bell
 Tamper alarm and duress alarm function
 It is available to connect the external secure door control unit via RS-485 to avoid the door opening
when the terminal is destroyed
 Intelligent English input
 Supports the third party alarm input.

Specification
System Operation system Linux
Display Size 2.4-inch
Resolution 320 × 240
Type LCD-TFT display screen
Audio output 1 loudspeaker, 1 buzzer
Network  Wired network TCP/IP, 10/100Mbps, self-adaptive
Wi-Fi Support
Interface  Network interface 1, Wiegand 1, Lock output 1,  Exit button 1, Door contact input 1,  IO input 1,  IO output 1,  TAMPER 1,  USB 1
Capacity
Card capacity 3000
Fingerprint capacity 3000
Event capacity 100,000

Authentication
Card type Mifare 1 card
Card reading distance 0 to 4.5 cm
Card reading duration ＜ 1 s
Fingerprint module Optical fingerprint module
Fingerprint comparing mode 1:1 and 1:N
Fingerprint recognition duration ＜ 1 s
Fingerprint False Acceptance Rate (FAR) ≤ 0.001 %
Fingerprint False Rejection Rate (FRR) ≤ 0.01 %
General
Indicator Power/status (red/green)
Power supply 12 VDC/1 A
Working temperature -10 °C to +55 °C (14 °F to +131 °F)
Working humidity 10% to 90% (no condensing)
Dimensions 205 mm × 76.5 mm × 37 mm (8.07″ × 3.01″ × 1.46″)
Installation Surface mounting
Language
English, Vietnamese, Brazilian Portuguese, Spanish, French, Italian, Arabic, Thai, Turkish, Indonesian, and Ukrainian
