Ruijie Ceiling Access Point RG-RAP73Pro WiFi 7 Tri-Band 14Gpbs NETWORK ACCESS POINT SINGAPORE Repair Replace

Ruijie RG-RAP73Pro WiFi 7 BE14000 Tri-Band Ceiling Access Point Singapore | 14Gbps | 10G SFP+ | 2.5G PoE | Repair & Replace

The Ruijie Reyee RG-RAP73Pro is a high-performance Wi-Fi 7 BE14000 tri-band ceiling access point designed for offices, hotels, schools, factories, commercial buildings and other high-density wireless environments.

With a combined theoretical wireless data rate of 13,657Mbps (approximately 14Gbps), tri-radio operation across 2.4GHz, 5GHz and 6GHz, Wi-Fi 7 Multi-Link Operation (MLO), 4K-QAM, a 2.5GbE PoE port and a dedicated 10Gbps SFP+ optical port, the RG-RAP73Pro is designed for next-generation enterprise wireless networks. (Ruijie)

Ruijie Ceiling Access Point RG-RAP73Pro WiFi 7 Tri-Band 14Gpbs NETWORK ACCESS POINT SINGAPORE Repair Replace

Ruijie Ceiling Access Point RG-RAP73Pro WiFi 7 Tri-Band 14Gpbs NETWORK ACCESS POINT SINGAPORE Repair Replace

Wi-Fi 7 BE14000 — Up to 13.657Gbps

The RG-RAP73Pro provides an aggregate theoretical wireless rate of:

13,657Mbps ≈ 13.7Gbps

distributed across three frequency bands:

2.4GHz → 688Mbps

5GHz → 4,323Mbps

6GHz → 8,646Mbps

This makes it significantly more capable than conventional dual-band Wi-Fi 5 or Wi-Fi 6 access points when used with compatible clients and a properly designed wired backbone. (Ruijie)

The advertised 14Gbps figure is the combined theoretical radio rate—not the guaranteed Internet speed of a single connected device.

Tri-Band 2.4GHz + 5GHz + 6GHz

The RG-RAP73Pro operates with three radios and eight spatial streams:

2.4GHz – 2×2 MU-MIMO

5GHz – 3×3 MU-MIMO

6GHz – 3×3 MU-MIMO

The additional 6GHz band provides significantly more spectrum for compatible Wi-Fi 6E and Wi-Fi 7 devices, helping reduce congestion in demanding wireless environments. (Ruijie)

This is particularly useful for locations with many wireless clients, such as hotels, schools, offices, meeting rooms and high-density business environments.

Wi-Fi 7 Multi-Link Operation – MLO

One of Wi-Fi 7’s major technologies is:

MLO – Multi-Link Operation

MLO allows compatible devices to use links across different frequency bands, enabling simultaneous transmission and reception over multiple links. Ruijie specifically highlights MLO as a key RG-RAP73Pro feature for improved streaming and network performance. (Ruijie)

Conceptually:

Traditional Wi-Fi

Device → One Wireless Link → AP

Wi-Fi 7 MLO

Device → Multiple Wireless Links → RG-RAP73Pro

The practical benefit can include improved throughput, latency and connection efficiency when both the AP and client support the required Wi-Fi 7 capabilities.

4K-QAM for Higher Data Efficiency

The RG-RAP73Pro also incorporates:

4096-QAM / 4K-QAM

Ruijie highlights 4K-QAM as a Wi-Fi 7 technology for enhanced data transmission and higher wireless speeds. (Ruijie)

This enables more information to be encoded within each transmission symbol under suitable radio conditions.

The result is greater potential wireless efficiency for compatible Wi-Fi 7 devices operating with sufficiently strong signal quality.

10Gbps SFP+ Fibre Port

A standout feature of the RG-RAP73Pro is its:

1 × 10GE SFP+ Port

This is particularly important because a high-performance Wi-Fi 7 AP can potentially exceed the capacity of a conventional 1Gbps Ethernet uplink.

The 10G SFP+ interface allows the AP to form part of a higher-bandwidth fibre network architecture. (Ruijie)

For example:

Internet / Firewall

↓

10G Core Switch

↓

10G Fibre

↓

Ruijie Ceiling Access Point RG-RAP73Pro WiFi 7 Tri-Band 14Gpbs NETWORK ACCESS POINT SINGAPORE Repair Replace

↓

Wi-Fi 7 Clients

This can be valuable in hotels, large offices and enterprise environments where multiple high-performance APs share a fast core network.

2.5GbE PoE Network Port

In addition to SFP+, the RG-RAP73Pro provides:

1 × 10/100/1000/2500BASE-T Ethernet Port

with PoE input. (Ruijie)

This allows the access point to connect to a Multi-Gigabit PoE switch using CAT6/CAT6A cabling.

A typical installation is:

Multi-Gigabit PoE Switch

↓

CAT6 / CAT6A

↓

2.5GbE + PoE

↓

RG-RAP73Pro Wi-Fi 7 AP

Using a Multi-Gigabit switch avoids restricting a high-performance Wi-Fi 7 AP to a conventional 1Gbps network connection.

PoE+ / PoE++ Power

Ruijie lists support for:

PoE+ / PoE++

as well as a 54VDC local power input. Maximum power consumption is specified at 30W. (Ruijie)

This provides flexibility for both new installations and network upgrades.

For a professional ceiling installation, PoE is particularly convenient because the same Ethernet cable can provide:

NETWORK + POWER

without requiring a separate power socket at the ceiling.

Up to 600 Wireless Clients

Ruijie specifies a maximum of:

600 Associated Wireless Clients

when all three frequency bands are enabled. (Ruijie)

The band-specific maximums are:

2.4GHz → 128 clients

5GHz → 256 clients

6GHz → 256 clients

A Singapore distributor lists 600 maximum / 200 recommended clients for the model. (Viskou)

For network design, the recommended client count is usually more meaningful than the absolute association limit because actual performance depends on traffic load, application type, RF conditions and available bandwidth.

Ideal for High-Density Wi-Fi

The RG-RAP73Pro is specifically positioned by Ruijie for high-density environments. (Ruijie)

Suitable applications include:

Hotels

Schools

Training Centres

Large Offices

Meeting Rooms

Factories

Commercial Buildings

Function Rooms

High-Density Workplaces

Enterprise Wireless Networks

A professional deployment should use an RF survey and capacity planning rather than selecting AP quantity based solely on physical floor area.

Ruijie Cloud Management

Deployment and management can be simplified through the Ruijie Cloud ecosystem. Ruijie also highlights Reyee AP Mesh, Wi-Fi Intelligent Optimization (WIO) and AP Portal capabilities for this platform. (Ruijie)

This can assist installers and administrators with centralised wireless network management, particularly when multiple APs are deployed.

A typical business architecture can therefore be:

Internet

↓

Firewall / Gateway

↓

Managed Multi-Gigabit PoE Switch

↓

RG-RAP73Pro × Multiple Locations

↓

Ruijie Cloud Management

Ruijie Ceiling Access Point RG-RAP73Pro WiFi 7 Tri-Band 14Gpbs NETWORK ACCESS POINT SINGAPORE Repair Replace

The platform supports Reyee AP Mesh, allowing multiple wireless access points to form a mesh network in appropriate deployments. (Ruijie)

However, for permanent commercial installations, a wired Ethernet or fibre backhaul is normally preferable where cabling is available.

Wired backhaul generally provides more predictable throughput and avoids consuming wireless capacity for inter-AP communication.

Wi-Fi Intelligent Optimization – WIO

Ruijie also provides:

WIO – Wi-Fi Intelligent Optimization

which is designed to simplify wireless network optimisation. (Ruijie)

For multi-AP installations, optimisation can help address issues such as:

Channel Selection

Radio Interference

AP Deployment

Wireless Performance

Client Experience

A proper RF design remains important, especially in dense office and hospitality deployments.

Ceiling or Wall Installation

The RG-RAP73Pro supports:

Ceiling Mounting

Wall Mounting

and measures approximately 220 × 220 × 45mm, excluding the mounting bracket. (Ruijie)

Ceiling mounting is generally preferred for open office, hotel and education environments because it can provide a more balanced omnidirectional coverage pattern.

Important: IP41 Indoor Access Point

The RG-RAP73Pro has an:

IP41 Rating

and an operating temperature specification of 0°C to 40°C. (Ruijie)

Therefore, it should primarily be treated as an indoor ceiling/wall access point, not as an outdoor weatherproof AP.

For outdoor applications exposed to rain, humidity or harsher environments, select a purpose-built outdoor-rated Ruijie access point.

Wi-Fi 7 Network Upgrade

Installing a Wi-Fi 7 AP alone does not automatically create a 14Gbps network.

To exploit the RG-RAP73Pro properly, the surrounding infrastructure should also be considered:

Wi-Fi 7 Client Devices

RG-RAP73Pro

2.5G / 10G Network Backbone

Multi-Gigabit Switch

Suitable CAT6A / Fibre Cabling

High-Speed Internet / Local Server

The slowest component in the network can become the bottleneck.

Ruijie Ceiling Access Point RG-RAP73Pro WiFi 7 Tri-Band 14Gpbs NETWORK ACCESS POINT SINGAPORE Repair Replace

SGCCTV can also troubleshoot existing wireless infrastructure before replacement.

Common AP problems include:

Access Point No Power

PoE Failure

Weak Wi-Fi Signal

Slow Wi-Fi

Frequent Disconnection

Network Cable Failure

Cannot Connect to Cloud

Incorrect VLAN

IP Address Conflict

Insufficient PoE Power

Poor AP Placement

Wi-Fi Interference

A professional troubleshooting sequence should check:

AP → CAT6 → PoE → SWITCH → VLAN → ROUTER → INTERNET

before assuming the access point itself is faulty.

SGCCTV Ruijie Wi-Fi 7 Singapore

SGCCTV – Choicecycle CCTV Pte Ltd provides Ruijie Wi-Fi 7 access points, Multi-Gigabit PoE switches, industrial network switches, routers, CAT6/CAT6A cabling, fibre networks, Wi-Fi troubleshooting, access-point replacement and wireless network installation.

Website: choicecycle.com.sg
Email: enquiry@choicecycle.com.sg
WhatsApp: +65 9853 4404

For manufacturer specifications, see Ruijie Reyee RG-RAP73Pro official product page.

10 Frequently Asked Questions

1. What is the Ruijie RG-RAP73Pro?
It is a Wi-Fi 7 BE14000 tri-band ceiling access point designed for high-performance and high-density business wireless networks. (Ruijie)

2. Is the RG-RAP73Pro really 14Gbps?
Its maximum combined theoretical wireless data rate is 13,657Mbps, commonly marketed as BE14000 or approximately 14Gbps. This is an aggregate radio rate, not guaranteed single-device Internet speed. (Ruijie)

3. Does it support 6GHz Wi-Fi?
Yes. It operates across 2.4GHz, 5GHz and 6GHz. (Ruijie)

4. Does it support Wi-Fi 7 MLO?
Yes. Multi-Link Operation (MLO) is one of Ruijie’s highlighted Wi-Fi 7 features for the RG-RAP73Pro. (Ruijie)

5. Does it have a 10Gbps network connection?
Yes. It provides one 10GE SFP+ optical interface. (Ruijie)

6. Does it have a 2.5GbE port?
Yes. It has one 10/100/1000/2500BASE-T RJ45 port supporting PoE input. (Ruijie)

7. Can it be powered by PoE?
Yes. Ruijie specifies PoE+/PoE++ support, with maximum power consumption of 30W. (Ruijie)

8. How many users can connect?
Ruijie specifies up to 600 associated wireless clients across the three enabled bands; a distributor specifies 200 as the recommended client count. (Ruijie)

9. Can RG-RAP73Pro be installed outdoors?
It is rated IP41, so it should not be treated as a weatherproof outdoor access point. (Ruijie)

10. Can SGCCTV replace an existing Wi-Fi 5 or Wi-Fi 6 AP with Wi-Fi 7?
Yes, subject to checking the existing PoE switch, Ethernet cabling, VLAN configuration, uplink bandwidth and coverage requirements. Upgrading the AP alone may not deliver the full benefit of Wi-Fi 7.

Ruijie RG-RAP73Pro Singapore, Ruijie WiFi 7 Singapore, WiFi 7 Access Point, BE14000 Access Point, Tri-Band WiFi 7, 14Gbps WiFi Access Point, 6GHz Access Point Singapore, 10G SFP+ WiFi AP, 2.5G PoE Access Point, Ceiling Access Point Singapore, Ruijie Cloud AP, High Density WiFi, WiFi Repair Singapore, WiFi Installation Singapore, SGCCTV Network

#Ruijie #RuijieReyee #RGRAP73Pro #WiFi7 #BE14000 #TriBandWiFi #6GHzWiFi #WirelessAccessPoint #CeilingAccessPoint #10GSFP #MultiGigabit #RuijieCloud #NetworkSingapore #SGCCTV #Choicecycle

CHOICECYCLE CCTV offers Ruijie Ceiling Access Point RG-RAP73Pro WiFi 7 Tri-Band 14Gpbs NETWORK ACCESS POINT SINGAPORE Repair Replace NEW.

RG-RAP73Pro: Ruijie Wi-Fi 7 BE14000 Tri-Band Ceiling Access Point

Next-Generation Wi-Fi 7 for High-Density Networks

The RG-RAP73Pro is a cutting-edge Wi-Fi 7 BE14000 tri-band ceiling access point, designed to deliver ultra-fast wireless speeds and superior connectivity. Ideal for hotels, educational institutions, offices, and high-density environments, the RG-RAP73Pro ensures seamless and high-performance networking.

Key Features

1. Next-Level Wi-Fi 7 Performance

• Ultra-fast speeds up to 13657 Mbps for superior wireless connectivity.
• Multi-Link Operation (MLO) allows simultaneous transmission across different frequency bands for optimized performance.
• 4K-QAM Modulation enhances data transmission efficiency for faster speeds.

2. High-Density Connectivity

• Supports up to 600 concurrent clients with a recommended 200 clients per AP.
• Tri-band technology (6 GHz, 5 GHz, 2.4 GHz) enhances load balancing and network efficiency.
• MU-MIMO support: 3×3 MU-MIMO (6 GHz & 5 GHz), 2×2 MU-MIMO (2.4 GHz) for seamless multiple-device connectivity.

3. Advanced Network Integration

• 10 Gbps SFP+ optical port for high-speed wired connectivity.
• 1 × 2.5G Ethernet Port for flexible network deployment.
• PoE support (802.3bt/at) and DC power supply (54V/0.55A) for easy installation.

4. Intelligent Wireless Optimization & Security

• WIO (Wi-Fi Intelligent Optimization) enhances network performance with a single click.
• AP Mesh Networking enables multiple APs to form a unified wireless network, simplifying deployment.
• Secure authentication with integrated captive portal and marketing solutions.

Technical Specifications

• Wi-Fi Protocols: IEEE 802.11a/b/g/n/ac/ax/be
• Wireless Data Rate: Up to 13657 Mbps
• Number of Ethernet Ports: 1 × 10/100/1000/2500BASE-T
• Number of Optical Ports: 1 × 10 Gbps SFP+
• Power Supply: 802.3bt/at PoE, 54V/0.55A DC
• Power Consumption: < 30W
• Operating Temperature: 0°C to +40°C (32°F to +104°F)
• IP Rating: IP41
• Dimensions: 220 mm × 220 mm × 45 mm (8.66 in. × 8.66 in. × 1.77 in.)
• Weight: ≤ 1.1 kg (2.43 lbs.)
• Max/Recommended Clients: 600 / 200
• Certifications: CE, RoHS, FCC, ISED, cTUVus

Why Choose RG-RAP73Pro?

1. Unparalleled Speed & Efficiency – Take advantage of Wi-Fi 7’s advanced features for next-gen performance.
2. High-Capacity Handling – Seamlessly supports multiple users and devices in demanding environments.
3. Optimized Networking – MLO, AP Mesh, and WIO ensure the best possible network experience.
4. Enterprise-Grade Security – Built-in captive portal and authentication for secure access.
5. Flexible Deployment – Ceiling-mount design, PoE support, and SFP+ integration make installation effortless.

Ideal Applications

• Hotels & Hospitality – Provide seamless high-speed Wi-Fi for guests.
• Educational Institutions – Enable high-density, secure, and fast internet for students and faculty.
• Offices & Corporate Environments – Ensure low-latency connectivity for business operations.
• Retail & Shopping Centers – Deliver smooth, secure wireless experiences for customers.

Contact Us

Store Location:

SGCCTV Choicecycle, Sim Lim Square CCTV Specialist #02-81

Operating Hours:

11 AM – 8 PM

WhatsApp:

+65 98534404 (for stock inquiries before visiting)

Email:

enquiry@choicecycle.com.sg

Website:

https://choicecycle.com.sg

Conclusion

The RG-RAP73Pro is the ultimate choice for high-speed, high-density wireless networking. With Wi-Fi 7 technology, advanced security, and seamless integration, this access point is perfect for modern enterprise and commercial environments. Upgrade to RG-RAP73Pro today and experience next-level wireless performance!

Which TP-Link is closest?

TP-Link EAP787 is probably the fairest overall performance-class comparison. Both are 8-stream enterprise Wi-Fi 7 ceiling APs, although their stream allocation is quite different.

However, the RG-RAP73Pro has one particularly interesting advantage:

1 × 10G SFP+ + 1 × 2.5GbE RJ45

That means you can run a 10Gbps fibre uplink directly to the AP, which can be valuable for long-distance backbone connections, electrical-isolation requirements, or high-bandwidth enterprise deployments. Ruijie specifically promotes the SFP+ interface as a way to unlock Wi-Fi 7 performance.

The EAP787 instead provides one 10G/2.5G copper Ethernet interface.

What about TP-Link EAP773?

TP-Link EAP773 is actually below the RG-RAP73Pro in radio capacity.

EAP773 is a 2×2 + 2×2 + 2×2, 6-stream design with up to 380+ clients in TP-Link’s current catalog, whereas RG-RAP73Pro is 2×2 + 3×3 + 3×3, 8-stream with up to 600 clients.

So I would position them approximately as:

TP-Link EAP773 < Ruijie RG-RAP73Pro ≈ TP-Link EAP787 < TP-Link EAP783

The EAP783 is considerably higher-end on raw radio capacity: it uses 12 spatial streams (4×4 + 4×4 + 4×4), supports up to 640 clients, and provides dual 10GbE ports.

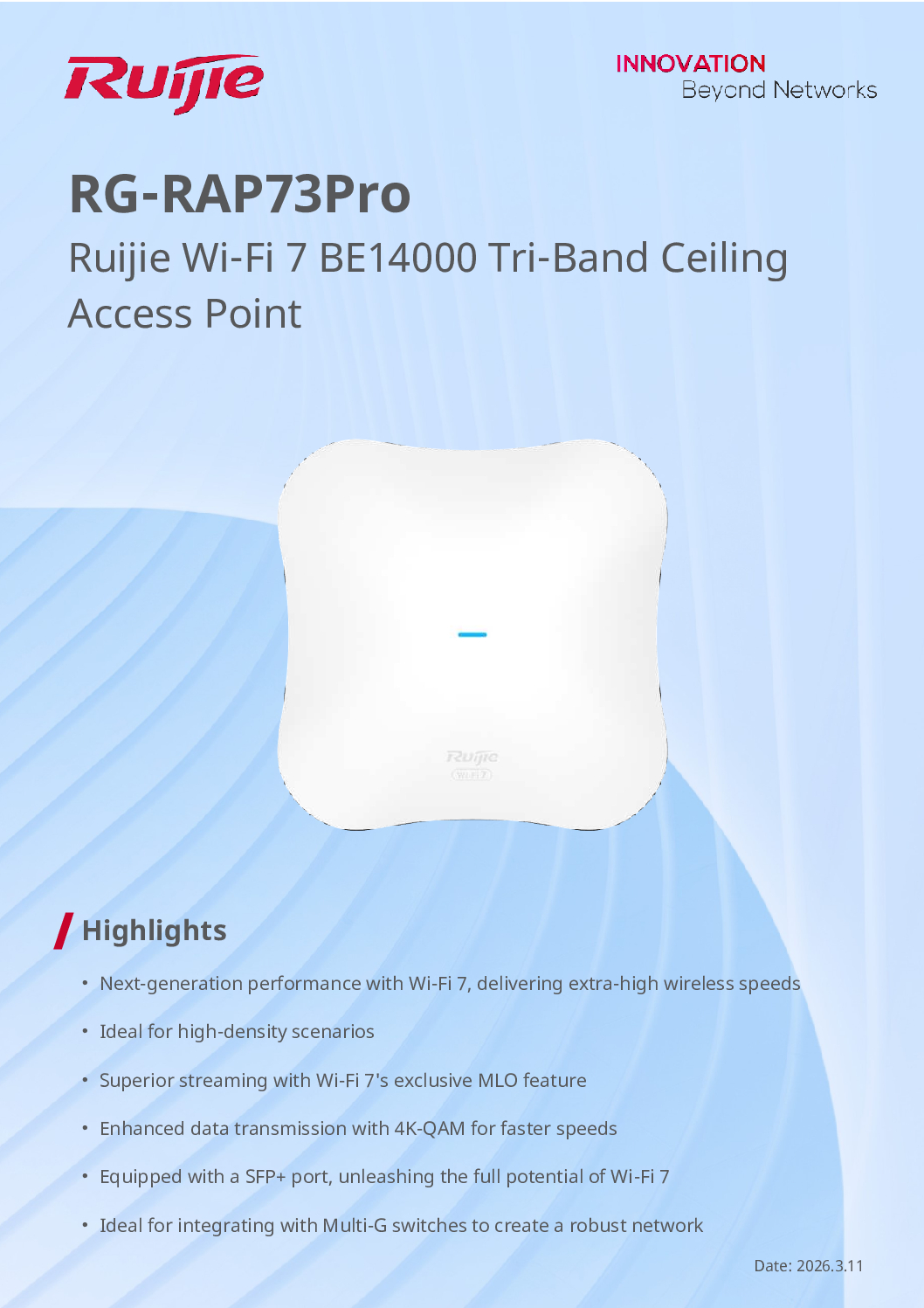

For a hotel, school, large office or high-density commercial deployment, the RG-RAP73Pro is particularly attractive when 10G fibre/SFP+ directly to the ceiling AP is part of the network design.
